Multifunctional Visualized Thermal Stage

This multifunctional visualized thermal stage that combines a traditional tube furnace with a conventional heating stage, enabling in-situ synthesis and in-situ optical characterization in a single compact instrument. It is designed for real-time observation of high-temperature processes such as CVD growth of 2D materials, annealing, quenching, and phase transitions — directly under an optical microscope or spectrometer.

Key Features

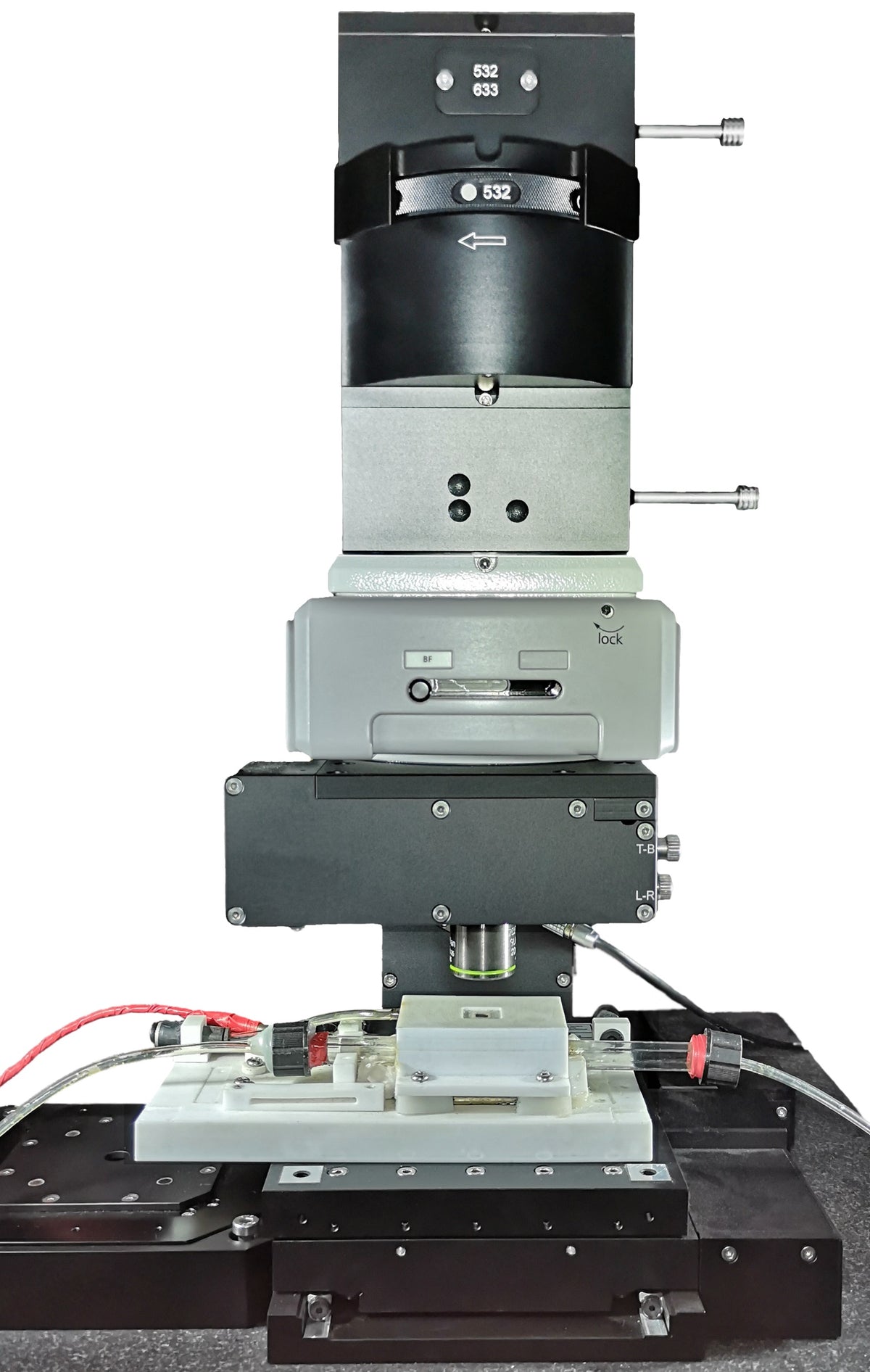

• Visualization system: Compatible with optical microscopy (up to 500× magnification, 50× objective lens) and spectroscopy (e.g., Raman). Uniform heating field, low surface temperature, high numerical aperture, wide transmittance spectrum.
• High efficiency, high precision: Heating/cooling rate up to 100 °C/min; temperature control precision ±0.1 °C from room temperature to 1100 °C.

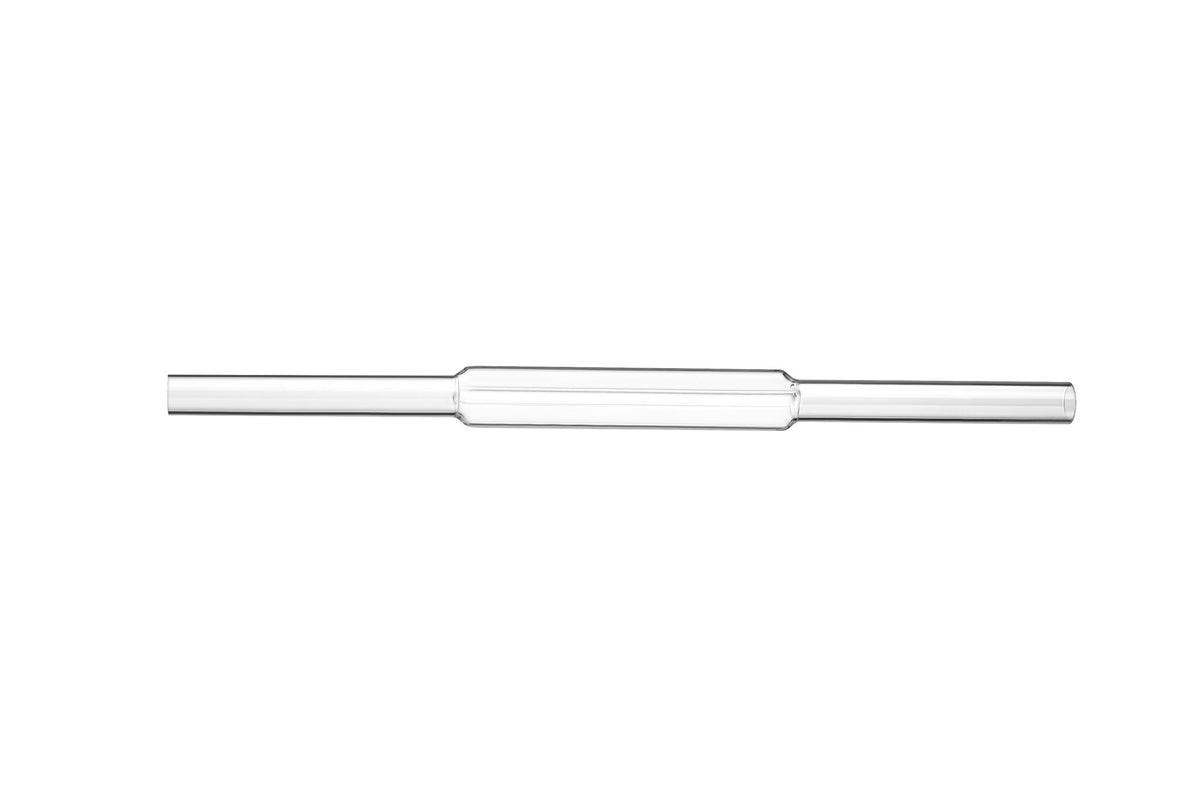

• Flexible gas environments: Two gas channels; compatible with N₂, Ar, O₂, gas mixtures, and low-pressure CVD (LPCVD). Self-developed water–gas transition system with quartz tube and multi-seal structure for good corrosion resistance.
• Precise sample positioning: Push-in/pull-out sample feeding with 80 mm stroke for accurate control of sample location; ideal for annealing and quenching experiments.
• Compact and safe: Water circulating cooling keeps the surface temperature near room temperature (<40 °C); low power consumption; built-in alarm system for safe operation.

Specifications

• Maximum temperature: 1100 °C
• Temperature precision: ±0.1 °C
• Heating/cooling rate: up to 100 °C/min
• Single zone: 175 × 80 × 50 mm body; heating zone 40 × 10 × 10 mm
• Dual zone: 220 × 80 × 50 mm body; heating zone 80 × 10 × 10 mm
• Ceramic crucible: 18 × 5 × 1.6 mm
• Gas channels: 2 (N₂, Ar, O₂, mixtures, LPCVD)
• Surface temperature: <40 °C (water cooling)
• Microscopy: up to 500× total magnification, 50× objective

Typical Applications

• In-situ CVD growth of graphene, MoS₂, WS₂, MoTe₂, CNTs, and other 2D materials
• Real-time observation of intermediate precursors during growth
• Annealing / quenching studies and metal phase-transition observation
• Combined in-situ imaging + Raman spectroscopy

Select Single Zone or Dual Zone above. For bulk inquiries or customization, please contact us.
